Planning Examples

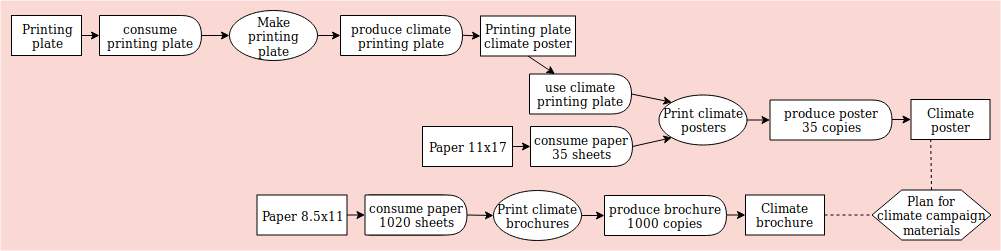

Simple plan

A plan for creating two different resources needed for one campaign. The first resource requires two chained processes.

plan diagram reflecting the yaml below

# Example: Simple operational plan

'@context':
  - '@vocab': http://w3id.org/valueflows/ont/vf#
  - printer: https://printer.example/
    skos: http://www.w3.org/2004/02/skos/core#
    om2: http://www.ontology-of-units-of-measure.org/resource/om-2/
    dcterms: http://purl.org/dc/terms/

'@graph':

  - '@id': printer:8e5fe80d-a769-4bd5-89e5-2136d33eab9f
    '@type': Plan
    name: Anti climate-change campaign materials
    skos:note: A set of printed materials for the campaign by Students for Peace and Justice
    due: 2019-04-08T17:00:00-5:00
    dcterms:created: 2019-04-01T10:35:00-5:00

  - '@id': printer:02b39a30-3e04-4305-9656-7f261aa63c84
    '@type': Process
    name: Print climate brochures
    plannedWithin: printer:8e5fe80d-a769-4bd5-89e5-2136d33eab9f

  - '@id': printer:a8236bbb-81e0-422d-9861-56d2417db0fb
    '@type': Commitment
    outputOf: printer:02b39a30-3e04-4305-9656-7f261aa63c84
    independentDemandOf: printer:8e5fe80d-a769-4bd5-89e5-2136d33eab9f
    action: produce
    provider: https://printer.example/
    receiver: https://printer.example/
    resourceInventoriedAs: printer:6b97b1be-8e07-44ac-82e5-214f1b2aaf33 # specific brochures
    resourceQuantity:
      om2:hasUnit: om2:one
      om2:hasNumericalValue: 1000

  - '@id': printer:b52a5815-fae9-43bf-be95-833b95dc0adb
    '@type': Commitment
    inputOf: printer:02b39a30-3e04-4305-9656-7f261aa63c84
    action: consume
    provider: https://printer.example/
    receiver: https://printer.example/
    resourceConformsTo: printer:3129ca8b-fcda-45be-bbda-294dc924d3b9 # paper
    resourceQuantity:
      om2:hasUnit: om2:one
      om2:hasNumericalValue: 1020

  - '@id': printer:9bd19194-a36d-4a1f-896b-8082887962cb
    '@type': Process
    name: Print climate posters
    plannedWithin: printer:8e5fe80d-a769-4bd5-89e5-2136d33eab9f

  - '@id': printer:33e8933b-ff73-4a01-964a-ca7a98893083
    '@type': Commitment
    outputOf: printer:9bd19194-a36d-4a1f-896b-8082887962cb
    independentDemandOf: printer:8e5fe80d-a769-4bd5-89e5-2136d33eab9f
    action: produce
    provider: https://printer.example/
    receiver: https://printer.example/
    resourceInventoriedAs: printer:6078f30a-b15b-4b1c-8e77-797abae11378 # specific posters
    resourceQuantity:
      om2:hasUnit: om2:one
      om2:hasNumericalValue: 35

  - '@id': printer:60f4204e-b8d2-4026-8577-102c3f82c0af
    '@type': Commitment
    inputOf: printer:9bd19194-a36d-4a1f-896b-8082887962cb
    action: consume
    provider: https://printer.example/
    receiver: https://printer.example/
    resourceConformsTo: printer:e56fd654-7b94-4d96-8e60-de39e08329a7 # paper
    resourceQuantity:
      om2:hasUnit: om2:one
      om2:hasNumericalValue: 35

  - '@id': printer:b90b0b77-09a2-42e2-8bd4-e9ae2c1c6172
    '@type': Commitment
    inputOf: printer:9bd19194-a36d-4a1f-896b-8082887962cb
    action: use
    provider: https://printer.example/
    receiver: https://printer.example/
    resourceConformsTo: printer:e4783bef-9006-490c-9c03-389272c7444d # printing plate for the specific posters
    effortQuantity:
      om2:hasUnit: om2:hour
      om2:hasNumericalValue: 1.5

  - '@id': printer:d4d2fd71-34f2-41c3-b1c5-19ad5ed2da59b
    '@type': Process
    name: Create poster plate
    plannedWithin: printer:8e5fe80d-a769-4bd5-89e5-2136d33eab9f

  - '@id': printer:583e83d9-a46d-44ff-bd71-88513a1d83c0
    '@type': Commitment
    outputOf: printer:d4d2fd71-34f2-41c3-b1c5-19ad5ed2da59b
    action: produce
    provider: https://printer.example/
    receiver: https://printer.example/
    resourceConformsTo: printer:e4783bef-9006-490c-9c03-389272c7444d # printing plate for the specific posters
    resourceQuantity:
      om2:hasUnit: om2:one
      om2:hasNumericalValue: 1

  - '@id': printer:ad56a7ed-be3c-4937-a3fb-0f156bcd2c47
    '@type': Commitment
    inputOf: printer:9bd19194-a36d-4a1f-896b-8082887962cb
    action: consume
    provider: https://printer.example/
    receiver: https://printer.example/
    resourceInventoriedAs: printer:86ad6e22-7640-4b93-972a-db7177ab2616 # blank printing plate
    resourceQuantity:
      om2:hasUnit: om2:one
      om2:hasNumericalValue: 1

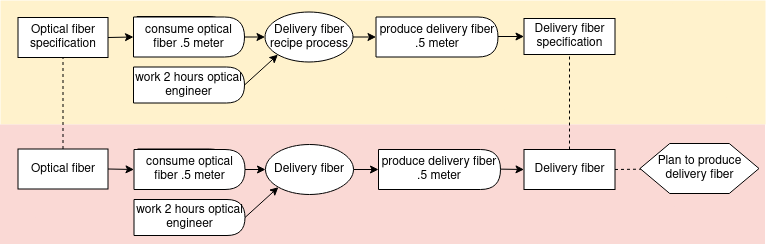

Simple plan from recipe

A plan generated from a recipe, for making a component.

plan from recipe diagram reflecting the yaml below

# Example: Simple plan from recipe

'@context':
  - '@vocab': http://w3id.org/valueflows/ont/vf#
  - alice: https://alice.example/
    sensor: https://sensorica.example/
    open: https://openhardware.example
    skos: http://www.w3.org/2004/02/skos/core#
    om2: http://www.ontology-of-units-of-measure.org/resource/om-2/
    dcterms: http://purl.org/dc/terms/

'@graph':

  # the recipe

  - '@id': urn:uuid:3be5259d-10f0-431c-9fec-9c0c15a461d3
    '@type': ResourceSpecification
    name: Delivery fiber
    skos:note: Optical fiber that connects 2 devices.

  - '@id': urn:uuid:33e8933b-ff73-4a01-964a-ca7a98893083
    '@type': RecipeFlow
    recipeOutputOf: urn:uuid:e1721a61-cd47-4556-84b9-8b1b81da15bf
    action: produce
    resourceConformsTo: urn:uuid:3be5259d-10f0-431c-9fec-9c0c15a461d3 # the delivery fiber spec
    resourceQuantity:
      om2:hasUnit: om2:metre
      om2:hasNumericalValue: .5

  - '@id': urn:uuid:e1721a61-cd47-4556-84b9-8b1b81da15bf
    '@type': RecipeProcess
    name: Make delivery fiber component
    skos:note: The delivery fiber makes the optical connection between an optical transducer and the sensor [electro-photonics device]. Requires cutting a piece of optical fiber and connectorizing it

  - '@id': urn:uuid:9bd19194-a36d-4a1f-896b-8082887962cb
    '@type': RecipeFlow
    recipeInputOf: urn:uuid:e1721a61-cd47-4556-84b9-8b1b81da15bf
    action: consume
    resourceConformsTo: wd:Q162 # optical fiber
    resourceQuantity:
      om2:hasUnit: om2:metre
      om2:hasNumericalValue: .5
    skos:note: Optical guide, can be of glass of polymer. Usually it comes in a cylindrical shape. Can be MM (multimode) or SM (single mode)

  - '@id': urn:uuid:60f4204e-b8d2-4026-8577-102c3f82c0af
    '@type': RecipeFlow
    recipeInputOf: urn:uuid:e1721a61-cd47-4556-84b9-8b1b81da15bf
    action: work
    resourceConformsTo: wd:Q640621 # optical engineering
    effortQuantity:
      om2:hasUnit: om2:hour
      om2:hasNumericalValue: 2

  # the plan

  - '@id': sensor:8e5fe80d-a769-4bd5-89e5-2136d33eab9f
    '@type': Plan
    name: Delivery fiber
    skos:note: Make the optical fiber that makes the connection between the device and the transducer.
    due: 2019-04-08T17:00:00-5:00
    dcterms:created: 2019-04-01T10:35:00-5:00

  - '@id': sensor:a8236bbb-81e0-422d-9861-56d2417db0fb
    '@type': Commitment
    independentDemandOf: sensor:8e5fe80d-a769-4bd5-89e5-2136d33eab9f
    outputOf: sensor:02b39a30-3e04-4305-9656-7f261aa63c84
    action: produce
    provider: https://sensorica.example/
    receiver: https://sensorica.example/
    resourceConformsTo: urn:uuid:b90b0b77-09a2-42e2-8bd4-e9ae2c1c6172 # delivery fiber
    resourceQuantity:
      om2:hasUnit: om2:metre
      om2:hasNumericalValue: .5

  - '@id': sensor:02b39a30-3e04-4305-9656-7f261aa63c84
    '@type': Process
    name: Make optical fiber component
    plannedWithin: sensor:8e5fe80d-a769-4bd5-89e5-2136d33eab9f
    skos:note: The delivery fiber makes the optical connection between an optical transducer and the sensor [electro-photonics device]. Requires cutting a piece of optical fiber and connectorizing it.

  - '@id': sensor:b52a5815-fae9-43bf-be95-833b95dc0adb
    '@type': Commitment
    inputOf: sensor:02b39a30-3e04-4305-9656-7f261aa63c84
    action: consume
    provider: https://sensorica.example/
    receiver: https://sensorica.example/
    resourceConformsTo: wd:Q162 # optical fiber
    resourceQuantity:
      om2:hasUnit: om2:metre
      om2:hasNumericalValue: .5
    skos:note: Optical guide, can be of glass of polymer. Usually it comes in a cylindrical shape. Can be MM (multimode) or SM (single mode).

  - '@id': sensor:52f0e212-3c4f-4d27-b345-5e964c135824
    '@type': Commitment
    inputOf: sensor:02b39a30-3e04-4305-9656-7f261aa63c84
    action: work
    provider: https://alice.example/
    receiver: https://sensorica.example/
    resourceConformsTo: wd:Q640621 # optical engineering
    effortQuantity:
      om2:hasUnit: om2:hour
      om2:hasNumericalValue: 2

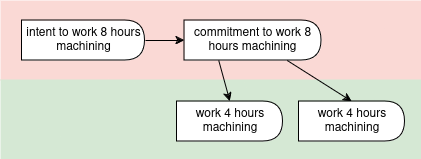

Fulfillment and satisfaction

Commitments satisfying intents, and economic events fulfilling commitments.

fulfillment diagram reflecting the yaml below

# Example: Intent - satisfied by - Commitment - fulfilled by - EconomicEvent

'@context':
  - '@vocab': http://w3id.org/valueflows/ont/vf#
  - bob: https://bob.example/
    mfg: https://manufacturer.example/
    skos: http://www.w3.org/2004/02/skos/core#
    om2: http://www.ontology-of-units-of-measure.org/resource/om-2/

'@graph':

  # A manufacturer makes a plan that includes an intent for some work which
  # they want someone in their network to commit to doing on Oct. 14 - 15

  - '@id': mfg:e1721a61-cd47-4556-84b9-8b1b81da15bf
    '@type': Intent
    action: work
    receiver: https://manufacturing.example/
    resourceConformsTo: wd:/Q192047 # machining
    effortQuantity:
      om2:hasUnit: om2:hour
      om2:hasNumericalValue: 8
    hasBeginning: 2018-10-14T8:00:00-0:00
    hasEnd: 2018-10-15T18:00:00-0:00

  # Bob commits to doing the work on Oct. 14

  - '@id': mfg:02b39a30-3e04-4305-9656-7f261aa63c84
    '@type': Commitment
    action: work
    provider: https://bob.example/
    receiver: https://manufacturing.example/
    resourceConformsTo: wd:Q192047 # machining
    effortQuantity:
      om2:hasUnit: om2:hour
      om2:hasNumericalValue: 8
    hasBeginning: 2018-10-14T8:00:00-0:00
    hasEnd: 2018-10-14T17:00:00-0:00
    satisfies: mfg:e1721a61-cd47-4556-84b9-8b1b81da15bf # the intent

  # Bob does the work in two 4-hour shifts on Oct. 14

  - '@id': mfg:d4d2fd71-34f2-41c3-b1c5-19ad5ed2da59
    '@type': EconomicEvent
    action: work
    provider: https://bob.example/
    receiver: https://manufacturing.example/
    resourceConforms: wd:Q192047 # machining
    effortQuantity:
      om2:hasUnit: om2:hour
      om2:hasNumericalValue: 4
    hasBeginning: 2018-10-14T8:00:00-0:00
    hasEnd: 2018-10-14T12:00:00-0:00
    fulfills: mfg:02b39a30-3e04-4305-9656-7f261aa63c84 # the commitment

  - '@id': mfg:c7897c39-7f05-4a5d-a487-80e130a2414b
    '@type': EconomicEvent
    action: work
    provider: https://bob.example/
    receiver: https://manufacturing.example/
    resourceConformsTo: wd:Q192047 # machining
    effortQuantity:
      om2:hasUnit: om2:hour
      om2:hasNumericalValue: 4
    hasBeginning: 2018-10-14T13:00:00-0:00
    hasEnd: 2018-10-14T17:00:00-0:00
    fulfills: mfg:02b39a30-3e04-4305-9656-7f261aa63c84 # the commitment
