Plan - Produce - Exchange Examples
Plan from recipe with production and exchange
This shows a simple recipe that includes both a process and the exchange of work that is input to the process for currency.
# Example: Simple recipe with both process and exchange
'@context':
- '@vocab': http://w3id.org/valueflows/ont/vf#
- alice: https://alice.example/
doc: https://documenters.example
'@graph':
# the recipe
- '@id': urn:uuid:3be5259d-10f0-431c-9fec-9c0c15a461d3
'@type': ResourceSpecification
name: Training handout
substitutable: false
- '@id': urn:uuid:6b5bc786-b9ed-4189-b34f-5ef7d10f1f86
'@type': ResourceSpecification
name: Technical writing # a skill
- '@id': urn:uuid:33e8933b-ff73-4a01-964a-ca7a98893083
'@type': RecipeFlow
recipeOutputOf: urn:uuid:e1721a61-cd47-4556-84b9-8b1b81da15bf
action: produce
resourceConformsTo: urn:uuid:3be5259d-10f0-431c-9fec-9c0c15a461d3 # the handout spec
resourceQuantity:
hasUnit: one
hasNumericalValue: 1
- '@id': urn:uuid:e1721a61-cd47-4556-84b9-8b1b81da15bf
'@type': RecipeProcess
name: Write and format training handout
- '@id': urn:uuid:60f4204e-b8d2-4026-8577-102c3f82c0af
'@type': RecipeFlow
recipeInputOf: urn:uuid:e1721a61-cd47-4556-84b9-8b1b81da15bf # the recipe process
recipeClauseOf: urn:uuid:9bd19194-a36d-4a1f-896b-8082887962cb # the recipe exchange
action: work
resourceConformsTo: urn:uuid:6b5bc786-b9ed-4189-b34f-5ef7d10f1f86 # technical writing
effortQuantity:
hasUnit: hour
hasNumericalValue: 15
- '@id': urn:uuid:9bd19194-a36d-4a1f-896b-8082887962cb
'@type': RecipeExchange
name: Exchange documentation work for FairCoin
- '@id': urn:uuid:3129ca8b-fcda-45be-bbda-294dc924d3b9
'@type': RecipeFlow
recipeReciprocalClauseOf: urn:uuid:9bd19194-a36d-4a1f-896b-8082887962cb # the recipe exchange
action: transfer
resourceConformsTo: wd:Q21002847 # FairCoin
resourceQuantity:
hasUnit: one
hasNumericalValue: 300
# the plan
- '@id': doc:8e5fe80d-a769-4bd5-89e5-2136d33eab9f
'@type': Plan
name: X Training Handout and Payment
note: Write and format the training handout, payment for writing work.
due: 2019-04-08T17:00:00-5:00
created: 2019-04-01T10:35:00-5:00
- '@id': doc:a8236bbb-81e0-422d-9861-56d2417db0fb
'@type': Commitment
independentDemandOf: doc:8e5fe80d-a769-4bd5-89e5-2136d33eab9f # the plan
outputOf: doc:02b39a30-3e04-4305-9656-7f261aa63c84
action: produce
provider: https://documenters.example/
receiver: https://documenters.example/
resourceConformsTo: urn:uuid:3be5259d-10f0-431c-9fec-9c0c15a461d3 # training handout
resourceQuantity:
hasUnit: one
hasNumericalValue: 1
- '@id': doc:02b39a30-3e04-4305-9656-7f261aa63c84
'@type': Process
name: Write and format X training handout
plannedWithin: doc:8e5fe80d-a769-4bd5-89e5-2136d33eab9f # the plan
- '@id': doc:52f0e212-3c4f-4d27-b345-5e964c135824
'@type': Commitment
inputOf: doc:02b39a30-3e04-4305-9656-7f261aa63c84
clauseOf: urn:uuid:583e83d9-a46d-44ff-bd71-88513a1d83c0
action: work
provider: https://alice.example/
receiver: https://documenters.example/
resourceConformsTo: urn:uuid:6b5bc786-b9ed-4189-b34f-5ef7d10f1f86
effortQuantity:
hasUnit: hour
hasNumericalValue: 20 # the estimate for this particular work is higher than the generic recipe
- '@id': urn:uuid:583e83d9-a46d-44ff-bd71-88513a1d83c0
'@type': Agreement
name: Exchange technical documentation work for FairCoin
- '@id': doc:b52a5815-fae9-43bf-be95-833b95dc0adb
'@type': Commitment
plannedWithin: doc:8e5fe80d-a769-4bd5-89e5-2136d33eab9f # the plan
reciprocalClauseOf: doc:02b39a30-3e04-4305-9656-7f261aa63c84
action: transfer
provider: https://documenters.example/
receiver: https://alice.example/
resourceConformsTo: wd:Q21002847 # FairCoin
resourceQuantity:
hasUnit: one
hasNumericalValue: 400 # the plan payment is adjusted from the generic recipe

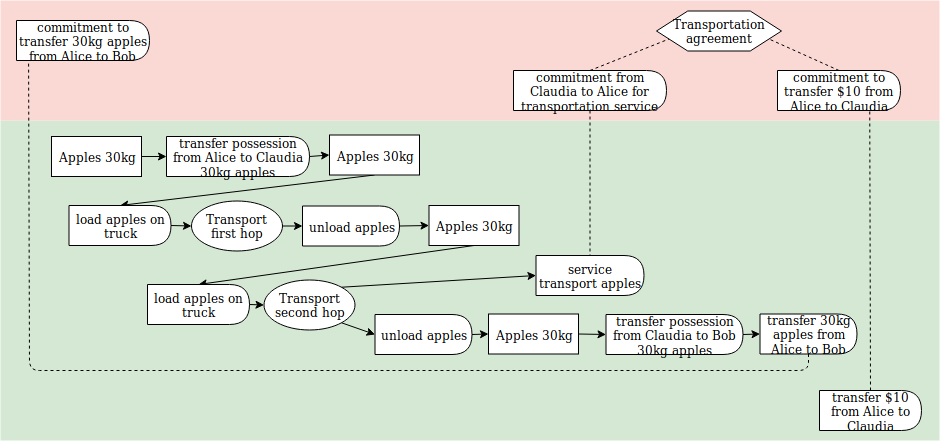

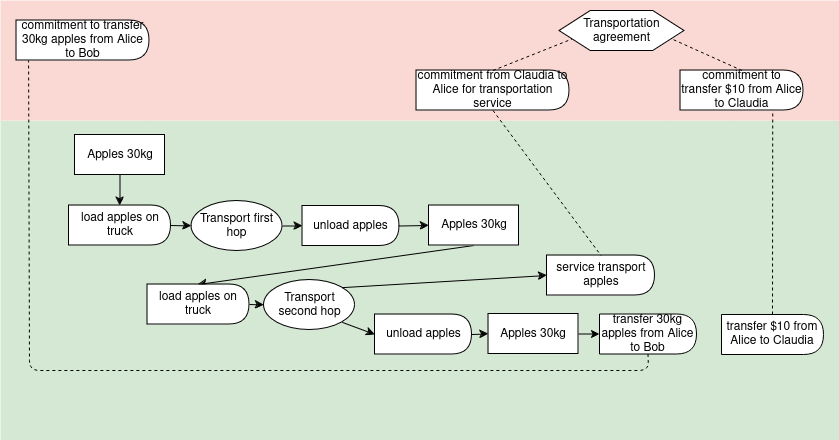

Transportation with transfer
Bob purchases 30kg of apples from Alice and Claudia transports them (FOB destination). This illustrates an implied transfer of custody, to keep the overall flow simpler. (The example without the implied transfer is shown after this one.)
# Transportation with transfer
'@context':
- '@vocab': http://w3id.org/valueflows/ont/vf#
- alice: https://alice.example/
bob: https://bob.example/
claudia: https://claudia.example/
'@graph':
# Bob purchases 30kg of apples from Alice and Claudia transports them (FOB destination)
# Alice's resource before
- '@id': alice:21f361a6-2375-46bb-b192-c21b5ba833bf
'@type': EconomicResource
conformsTo: wd:Q41777871 # haralson apples
trackingIdentifier: lot-alice-apples-2018-10-11
locatedAt: geo:70ee3034-0d15-4471-8ee3-91c60bb1a9c9
primaryAccountable: https://alice.example
accountingQuantity:
hasUnit: kilogram
hasNumericalValue: 230
onhandQuantity:
hasUnit: kilogram
hasNumericalValue: 230
# alice commits to transfer some apples to bob
- '@id': urn:uuid:6b5bc786-b9ed-4189-b34f-5ef7d10f1f86
'@type': Commitment
action: transfer
resourceConformsTo: wd:Q41777871 # haralson apples
provider: https://alice.example/
receiver: https://bob.example/
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 30
# alice and claudia agree on transportation of the apples
- '@id': urn:uuid:f325a950-5737-488d-b122-8f21114d0eb0
'@type': Agreement
note: exchange transportation service for currency
stipulates:
- '@id': urn:uuid:c7897c39-7f05-4a5d-a487-80e130a2414a
'@type': Commitment
note: Transportation of alice's apples from alice's location to bob's location
action: deliverService
resourceClassifiedAs: wd:Q7590 # transportation service
provider: https://claudia.example/
receiver: https://alice.example/
resourceQuantity:
hasUnit: one
hasNumericalValue: 1
stipulatesReciprocal:
- '@id': urn:uuid:33e8933b-ff73-4a01-964a-ca7a98893083
'@type': Commitment
action: transfer
resourceConformsTo: wd:Q4917 # US Dollar
provider: https://alice.example/
receiver: https://claudia.example/
resourceQuantity:
hasUnit: one
hasNumericalValue: 10
# claudia transports the apples in two hops
- '@id': claudia:633f6e56-6c7d-4a5b-b9c9-1a8adafd8960
'@type': Process
note: Claudia transports the apples to the distribution center
hasInput:
- '@id': claudia:fd399b37-0740-4a68-a184-1e655021ca21
'@type': EconomicEvent
action: pickup # with implied transfer custody, since different provider/receiver
resourceInventoriedAs: alice:21f361a6-2375-46bb-b192-c21b5ba833bf
toResourceInventoriedAs: claudia:27be5cab-d740-4194-9298-1661a69d9d95
provider: https://alice.example/
receiver: https://claudia.example/
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 30
hasOutput:
- '@id': claudia:57f1c1d0-432e-4bfa-9d32-002b8955a708
'@type': EconomicEvent
action: dropoff # no implied transfer, one agent and one resource
resourceInventoriedAs: claudia:27be5cab-d740-4194-9298-1661a69d9d95
provider: https://claudia.example/
receiver: https://claudia.example/
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 30
- '@id': claudia:c404cff5-19c7-453d-b0d8-d8e96055bd0c
'@type': Process
note: Claudia transports the apples from the distribution center to the receiver
hasInput:
- '@id': claudia:856c43b1-0a63-445f-a56f-707b257f086e
'@type': EconomicEvent
action: pickup
resourceInventoriedAs: claudia:27be5cab-d740-4194-9298-1661a69d9d95
provider: https://claudia.example/
receiver: https://claudia.example/
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 30
hasOutput:
- '@id': claudia:9cb4944b-d26d-4774-a530-d18f2747c0d8
'@type': EconomicEvent
action: dropoff # implied transfer of custody
resourceInventoriedAs: claudia:27be5cab-d740-4194-9298-1661a69d9d95
toResourceInventoriedAs: bob:9bd19194-a36d-4a1f-896b-8082887962cb
provider: https://claudia.example/
receiver: https://bob.example/
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 30
- '@id': urn:uuid:68cabaf3-deb8-4bd5-a439-798263abe35a
'@type': EconomicEvent
note: Transportation of alice's apples to bob's location
action: deliverService
resourceConformsTo: wd:Q7590 # transportation service
provider: https://claudia.example/
receiver: https://alice.example/
resourceQuantity:
hasUnit: one
hasNumericalValue: 1
fulfills: urn:uuid:c7897c39-7f05-4a5d-a487-80e130a2414a # the commitment
# receipt of the apples triggers finalizing the transfer of ownership
- '@id': urn:uuid:ad56a7ed-be3c-4937-a3fb-0f156bcd2c47
'@type': EconomicEvent
action: transferAllRights
resourceClassifiedAs: wd:Q41777871 # haralson apples
trackingIdentifier: lot-alice-apples-2018-10-11
provider: https://alice.example/
receiver: https://bob.example/
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 30
fulfills: urn:uuid:6b5bc786-b9ed-4189-b34f-5ef7d10f1f86 # the commitment
# resources snapshot
- '@id': alice:21f361a6-2375-46bb-b192-c21b5ba833bf
'@type': EconomicResource
conformsTo: wd:Q41777871 # haralson apples
trackingIdentifier: lot-alice-apples-2018-10-11
locatedAt: geo:70ee3034-0d15-4471-8ee3-91c60bb1a9c9
primaryAccountable: https://alice.example
accountingQuantity:
hasUnit: kilogram
hasNumericalValue: 200
onhandQuantity:
hasUnit: kilogram
hasNumericalValue: 200
- '@id': bob:9bd19194-a36d-4a1f-896b-8082887962cb
'@type': EconomicResource
conformsTo: wd:Q41777871 # haralson apples
trackingIdentifier: lot-alice-apples-2018-10-11
locatedAt: geo:b52a5815-fae9-43bf-be95-833b95dc0ada
primaryAccountable: https://bob.example
accountingQuantity:
hasUnit: kilogram
hasNumericalValue: 30
onhandQuantity:
hasUnit: kilogram
hasNumericalValue: 30
- '@id': claudia:27be5cab-d740-4194-9298-1661a69d9d95 # record of claudia's bill of lading on the truck
'@type': EconomicResource
conformsTo: wd:Q41777871 # haralson apples
onhandQuantity:
hasUnit: kilogram
hasNumericalValue: 0
# alice pays claudia for the transportation service
- '@id': urn:uuid:8baa8ff7-9c1e-4586-ae7b-79d620a3cac9
'@type': EconomicEvent
action: transfer
resourceConformsTo: wd:Q4917 # US Dollar
resourceInventoriedAs: alice:daa2ec3b-2c1a-4eb1-839f-8dcec1a1f93a # alice's bank account
toResourceInventoriedAs: claudia:bd5806d6-4a36-45b9-b3b6-3e7d361a5a14 # claudia's bank account
provider: https://alice.example/
receiver: https://claudia.example/
resourceQuantity:
hasUnit: one
hasNumericalValue: 10
fulfills: urn:uuid:33e8933b-ff73-4a01-964a-ca7a98893083 # the commitment
# claudia transports the apples in two hops
- '@id': claudia:633f6e56-6c7d-4a5b-b9c9-1a8adafd8960
'@type': Process
note: Claudia transports the apples to the distribution center
hasInput:
- '@id': claudia:fd399b37-0740-4a68-a184-1e655021ca21
'@type': EconomicEvent
action: pickup
resourceInventoriedAs: alice:21f361a6-2375-46bb-b192-c21b5ba833bf
provider: https://alice.example/
receiver: https://claudia.example/
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 30
hasOutput:
- '@id': claudia:57f1c1d0-432e-4bfa-9d32-002b8955a708
'@type': EconomicEvent
action: dropoff
resourceInventoriedAs: alice:21f361a6-2375-46bb-b192-c21b5ba833bf
provider: https://claudia.example/
receiver: https://claudia.example/
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 30
- '@id': claudia:c404cff5-19c7-453d-b0d8-d8e96055bd0c
'@type': Process
note: Claudia transports the apples from the distribution center to the receiver
hasInput:
- '@id': claudia:856c43b1-0a63-445f-a56f-707b257f086e
'@type': EconomicEvent
action: pickup
resourceInventoriedAs: alice:21f361a6-2375-46bb-b192-c21b5ba833bf
provider: https://claudia.example/
receiver: https://claudia.example/
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 30
hasOutput:
- '@id': claudia:9cb4944b-d26d-4774-a530-d18f2747c0d8
'@type': EconomicEvent
action: dropoff
resourceInventoriedAs: alice:21f361a6-2375-46bb-b192-c21b5ba833bf
toResourceInventoriedAs: bob:9bd19194-a36d-4a1f-896b-8082887962cb
provider: https://claudia.example/
receiver: https://bob.example/
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 30
- '@id': urn:uuid:68cabaf3-deb8-4bd5-a439-798263abe35a
'@type': EconomicEvent
note: Transportation of alice's apples from alice's location to bob's location
action: deliverService
resourceConformsTo: wd:Q7590 # transportation service
provider: https://claudia.example/
receiver: https://alice.example/
resourceQuantity:
hasUnit: one
hasNumericalValue: 1
fulfills: urn:uuid:c7897c39-7f05-4a5d-a487-80e130a2414a # the commitment
# Transportation with transfer
'@context':
- '@vocab': http://w3id.org/valueflows/ont/vf#
- alice: https://alice.example/
bob: https://bob.example/
claudia: https://claudia.example/
'@graph':
# Bob purchases 30kg of apples from Alice and Claudia transports them (FOB destination)
# Alice's resource before
- '@id': alice:21f361a6-2375-46bb-b192-c21b5ba833bf
'@type': EconomicResource
conformsTo: wd:Q41777871 # haralson apples
trackingIdentifier: lot-alice-apples-2018-10-11
locatedAt: geo:70ee3034-0d15-4471-8ee3-91c60bb1a9c9
primaryAccountable: https://alice.example
accountingQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 230
onhandQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 230
# alice commits to transfer some apples to bob
- '@id': urn:uuid:6b5bc786-b9ed-4189-b34f-5ef7d10f1f86
'@type': Commitment
action: transfer
resourceConformsTo: wd:Q41777871 # haralson apples
provider: https://alice.example/
receiver: https://bob.example/
resourceQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 30
# alice and claudia agree on transportation of the apples
- '@id': urn:uuid:f325a950-5737-488d-b122-8f21114d0eb0
'@type': Agreement
skos:note: exchange transportation service for currency
stipulates:
- '@id': urn:uuid:c7897c39-7f05-4a5d-a487-80e130a2414a
'@type': Commitment
skos:note: Transportation of alice's apples from alice's location to bob's location
action: deliverService
resourceClassifiedAs: wd:Q7590 # transportation service
provider: https://claudia.example/
receiver: https://alice.example/
resourceQuantity:
om2:hasUnit: om2:one
om2:hasNumericalValue: 1
stipulatesReciprocal:
- '@id': urn:uuid:33e8933b-ff73-4a01-964a-ca7a98893083
'@type': Commitment
action: transfer
resourceConformsTo: wd:Q4917 # US Dollar
provider: https://alice.example/
receiver: https://claudia.example/
resourceQuantity:
om2:hasUnit: om2:one
om2:hasNumericalValue: 10
# alice transfers custody of the apples to claudia for transportation
- '@id': urn:uuid:6b5bc786-b9ed-4189-b34f-5ef7d10f1f87
'@type': EconomicEvent
action: transferCustody # this is an event that was implied in the first example
resourceClassifiedAs: wd:Q41777871 # haralson apples
trackingIdentifier: lot-alice-apples-2018-10-11
provider: https://alice.example/
receiver: https://claudia.example/
resourceInventoriedAs: alice:21f361a6-2375-46bb-b192-c21b5ba833bf # alice's apples
toResourceInventoriedAs: claudia:27be5cab-d740-4194-9298-1661a69d9d95 # claudia's bill of lading on the truck
resourceQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 30
# resources snapshot
- '@id': alice:21f361a6-2375-46bb-b192-c21b5ba833bf
'@type': EconomicResource
classifiedAs: wd:Q41777871 # haralson apples
trackingIdentifier: lot-alice-apples-2018-10-11
locatedAt: geo:70ee3034-0d15-4471-8ee3-91c60bb1a9c9
primaryAccountable: https://alice.example
accountingQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 230
onhandQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 200
- '@id': claudia:27be5cab-d740-4194-9298-1661a69d9d95
'@type': EconomicResource
classifiedAs: wd:Q41777871 # haralson apples
trackingIdentifier: lot-alice-apples-2018-10-11
onhandQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 30
# claudia transports the apples in two hops
- '@id': claudia:633f6e56-6c7d-4a5b-b9c9-1a8adafd8960
'@type': Process
skos:note: Claudia transports the apples
hasInput:
- '@id': claudia:fd399b37-0740-4a68-a184-1e655021ca21
'@type': EconomicEvent
action: pickup
resourceInventoriedAs: claudia:27be5cab-d740-4194-9298-1661a69d9d95
provider: https://claudia.example/
receiver: https://claudia.example/
resourceQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 30
hasOutput:
- '@id': claudia:57f1c1d0-432e-4bfa-9d32-002b8955a708
'@type': EconomicEvent
action: dropoff
resourceInventoriedAs: claudia:27be5cab-d740-4194-9298-1661a69d9d95
provider: https://claudia.example/
receiver: https://claudia.example/
resourceQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 30
- '@id': claudia:c404cff5-19c7-453d-b0d8-d8e96055bd0c
'@type': Process
skos:note: Claudia transports the apples
hasInput:
- '@id': claudia:856c43b1-0a63-445f-a56f-707b257f086e
'@type': EconomicEvent
action: pickup
resourceInventoriedAs: claudia:27be5cab-d740-4194-9298-1661a69d9d95
provider: https://claudia.example/
receiver: https://claudia.example/
resourceQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 30
hasOutput:
- '@id': claudia:9cb4944b-d26d-4774-a530-d18f2747c0d8
'@type': EconomicEvent
action: dropoff
resourceInventoriedAs: claudia:27be5cab-d740-4194-9298-1661a69d9d95
provider: https://claudia.example/
receiver: https://claudia.example/
resourceQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 30
- '@id': urn:uuid:68cabaf3-deb8-4bd5-a439-798263abe35a
'@type': EconomicEvent
skos:note: Transportation of alice's apples to bob's location
action: deliverService
resourceConformsTo: wd:Q7590 # transportation service
provider: https://claudia.example/
receiver: https://alice.example/
resourceQuantity:
om2:hasUnit: om2:one
om2:hasNumericalValue: 1
fulfills: urn:uuid:c7897c39-7f05-4a5d-a487-80e130a2414a # the commitment
# bob receives the apples
- '@id': urn:uuid:7a63ea10-b1c3-441a-9a08-fb8630c02614
'@type': EconomicEvent
action: transferCustody # this is the event that was implied in the first example
resourceConformsTo: wd:Q41777871 # haralson apples
trackingIdentifier: lot-alice-apples-2018-10-11
resourceInventoriedAs: claudia:27be5cab-d740-4194-9298-1661a69d9d95
toResourceInventoriedAs: bob:9bd19194-a36d-4a1f-896b-8082887962cb
provider: https://claudia.example/
receiver: https://bob.example/
resourceQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 30
# receipt of the apples triggers finalizing the transfer of ownership
- '@id': urn:uuid:ad56a7ed-be3c-4937-a3fb-0f156bcd2c47
'@type': EconomicEvent
action: transferAllRights
resourceClassifiedAs: wd:Q41777871 # haralson apples
trackingIdentifier: lot-alice-apples-2018-10-11
provider: https://alice.example/
receiver: https://bob.example/
resourceQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 30
fulfills: urn:uuid:6b5bc786-b9ed-4189-b34f-5ef7d10f1f86 # the commitment
# resources snapshot
- '@id': alice:21f361a6-2375-46bb-b192-c21b5ba833bf
'@type': EconomicResource
conformsTo: wd:Q41777871 # haralson apples
trackingIdentifier: lot-alice-apples-2018-10-11
locatedAt: geo:70ee3034-0d15-4471-8ee3-91c60bb1a9c9 # only the possessed amount
primaryAccountable: https://alice.example
accountingQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 200
onhandQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 200
- '@id': bob:9bd19194-a36d-4a1f-896b-8082887962cb
'@type': EconomicResource
conformsTo: wd:Q41777871 # haralson apples
trackingIdentifier: lot-alice-apples-2018-10-11
locatedAt: geo:b52a5815-fae9-43bf-be95-833b95dc0ada # only the possessed amount
primaryAccountable: https://bob.example
accountingQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 30
onhandQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 30
- '@id': claudia:27be5cab-d740-4194-9298-1661a69d9d95 # claudia's bill of lading on the truck
'@type': EconomicResource
conformsTo: wd:Q41777871 # haralson apples
onhandQuantity:
om2:hasUnit: om2:kilogram
om2:hasNumericalValue: 0
# alice pays claudia for the transportation service
- '@id': urn:uuid:8baa8ff7-9c1e-4586-ae7b-79d620a3cac9
'@type': EconomicEvent
action: transfer
resourceConformsTo: wd:Q4917 # US Dollar
resourceInventoriedAs: alice:daa2ec3b-2c1a-4eb1-839f-8dcec1a1f93a # alice's bank account
toResourceInventoriedAs: claudia:bd5806d6-4a36-45b9-b3b6-3e7d361a5a14 # claudia's bank account
provider: https://alice.example/
receiver: https://claudia.example/
resourceQuantity:
om2:hasUnit: om2:one
om2:hasNumericalValue: 10
fulfills: urn:uuid:33e8933b-ff73-4a01-964a-ca7a98893083 # the commitment

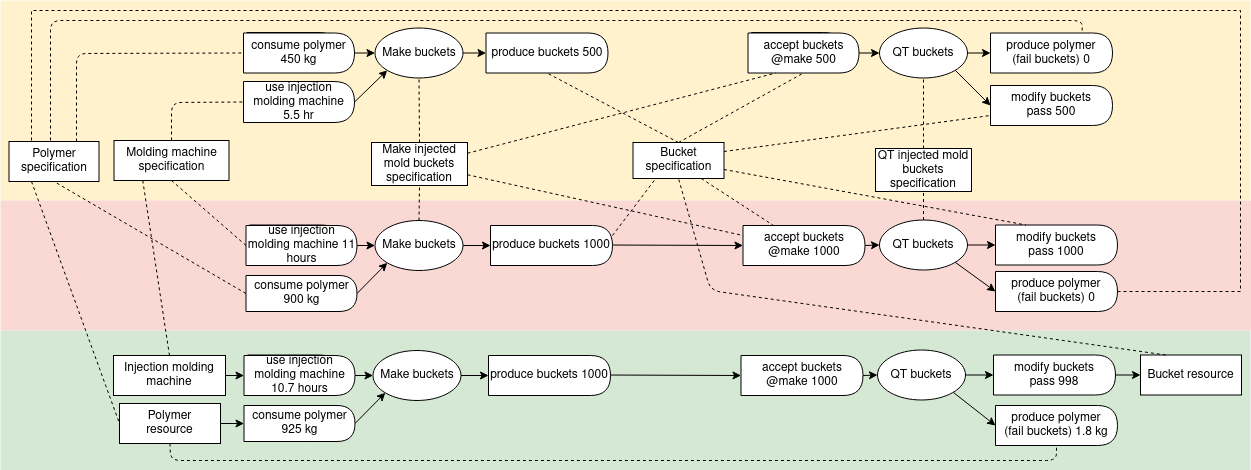

Manufacturing and workflow
A component is produced (manufacturing pattern) and tested (workflow pattern). QT ("quality testing") gives pass and/or fail outputs. The failed components are passed back into a source resource (because it can be re-used as an input as part of the QT process, to be used in this or the next manufacturing run.
The QT needs the stage and state of the input component resource, because QT would only be done on components that are made and not tested yet. By the same token, components would only be sent into the next assembly process if they have passed the QT process/stage (not part of this example).
This example includes recipe, plan, and actuals.
# Example: Workflow recipe, plan, execution, including stage and state usage
'@context':
- '@vocab': http://w3id.org/valueflows/ont/vf#
- mfg: https://manufacturing.example/
'@graph':
# specifications
- '@id': urn:uuid:3be5259d-10f0-431c-9fec-9c0c15a461d3
'@type': ResourceSpecification
name: Bucket white 5 gallon
defaultUnitOfResource: one
substitutable: true
- '@id': urn:uuid:d4d2fd71-34f2-41c3-b1c5-19ad5ed2da58
'@type': ResourceSpecification
name: Thermoplastic polymer white
DefaultUnitOfResource: kilogram
substitutable: true
- '@id': urn:uuid:c7897c39-7f05-4a5d-a487-80e130a2414a
'@type': ResourceSpecification
name: Injection molding machine
defaultUnitOfResource: one
defaultUnitOfEffort: hour
substitutable: true
- '@id': mfg:27be5cab-d740-4194-9298-1661a69d9d95
'@type': ProcessSpecification
name: Make injection molded buckets
- '@id': mfg:6fb358a3-2859-4d6a-a4fa-431603ee70f5
'@type': ProcessSpecification
name: QT injection molded buckets
# resources before
- '@id': mfg:3129ca8b-fcda-45be-bbda-294dc924d3b9
'@type': EconomicResource
name: Bucket white 5 gallon
conformsTo: urn:uuid:3be5259d-10f0-431c-9fec-9c0c15a461d3
accountingQuantity:
hasUnit: one
hasNumericalValue: 320
state: pass
stage: mfg:6fb358a3-2859-4d6a-a4fa-431603ee70f5 # QT
- '@id': mfg:6b5bc786-b9ed-4189-b34f-5ef7d10f1f86
'@type': EconomicResource
name: Thermoplastic polymer white
conformsTo: urn:uuid:d4d2fd71-34f2-41c3-b1c5-19ad5ed2da58
accountingQuantity:
hasUnit: kilogram
hasNumericalValue: 2455
- '@id': mfg:23799c14-c368-4653-a584-83bf9ae8b82a
'@type': EconomicResource
name: Injection molding maching
conformsTo: urn:uuid:c7897c39-7f05-4a5d-a487-80e130a2414a
trackingIdentifier: DDE098989099911
accountingQuantity:
hasUnit: one
hasNumericalValue: 1
unitOfEffort: hour
# the recipe (here the recipe runs "backwards" from the final product, similar to a BOM)
- '@id': mfg:33e8933b-ff73-4a01-964a-ca7a98893083
'@type': RecipeFlow
recipeOutputOf: mfg:a8356625-bf64-4c16-9099-28aa1b718c4b
action: modify
state: pass
resourceConformsTo: urn:uuid:3be5259d-10f0-431c-9fec-9c0c15a461d3 # bucket
resourceQuantity:
hasUnit: one
hasNumericalValue: 500
- '@id': mfg:54b814ee-62dc-40c1-bb96-f8582aa4f771
'@type': RecipeFlow
recipeOutputOf: mfg:a8356625-bf64-4c16-9099-28aa1b718c4b
action: produce # fail
resourceConformsTo: urn:uuid:d4d2fd71-34f2-41c3-b1c5-19ad5ed2da58 # polymer
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 0
- '@id': mfg:a8356625-bf64-4c16-9099-28aa1b718c4b
'@type': RecipeProcess
name: QT bucket white 5 gallon - minimum run
processConformsTo: mfg:6fb358a3-2859-4d6a-a4fa-431603ee70f5 # the process specification
time:hasDuration:
time:unitType unit:Hour
time:numericDuration 1
- '@id': mfg:2342d456-5d6f-46d5-a7ed-3ac7bfd5a86c
'@type': RecipeFlow
recipeInputOf: mfg:a8356625-bf64-4c16-9099-28aa1b718c4b
action: accept
resourceConformsTo: urn:uuid:3be5259d-10f0-431c-9fec-9c0c15a461d3 # bucket
stage: mfg:27be5cab-d740-4194-9298-1661a69d9d95 # 'make' process specification
resourceQuantity:
hasUnit: one
hasNumericalValue: 500
- '@id': mfg:33e8933b-ff73-4a01-964a-ca7a98893083
'@type': RecipeFlow
recipeOutputOf: mfg:e1721a61-cd47-4556-84b9-8b1b81da15bf
action: produce
resourceConformsTo: urn:uuid:3be5259d-10f0-431c-9fec-9c0c15a461d3 # bucket
resourceQuantity:
hasUnit: one
hasNumericalValue: 500
- '@id': mfg:e1721a61-cd47-4556-84b9-8b1b81da15bf
'@type': RecipeProcess
name: Make bucket white 5 gallon - minimum run
processConformsTo: mfg:27be5cab-d740-4194-9298-1661a69d9d95 # the process specification
time:hasDuration:
time:unitType unit:Hour
time:numericDuration 7
- '@id': mfg:9bd19194-a36d-4a1f-896b-8082887962cb
'@type': RecipeFlow
recipeInputOf: mfg:e1721a61-cd47-4556-84b9-8b1b81da15bf
action: consume
resourceConformsTo: urn:uuid:d4d2fd71-34f2-41c3-b1c5-19ad5ed2da58 # polymer
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 450
- '@id': mfg:60f4204e-b8d2-4026-8577-102c3f82c0af
'@type': RecipeFlow
recipeInputOf: mfg:e1721a61-cd47-4556-84b9-8b1b81da15bf
action: use
resourceConformsTo: urn:uuid:c7897c39-7f05-4a5d-a487-80e130a2414a # injection molding machine
effortQuantity:
hasUnit: hour
hasNumericalValue: 5.5
# the plan (shown running "forwards")
- '@id': mfg:8e5fe80d-a769-4bd5-89e5-2136d33eab9f
'@type': Plan
name: Buckets run number 381
due: 2019-04-08T17:00:00-5:00
- '@id': mfg:b52a5815-fae9-43bf-be95-833b95dc0adb
'@type': Commitment
inputOf: mfg:02b39a30-3e04-4305-9656-7f261aa63c84
action: consume
provider: https://manufacturing.example/
receiver: https://manufacturing.example/
resourceConformsTo: urn:uuid:d4d2fd71-34f2-41c3-b1c5-19ad5ed2da58 # polymer
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 900
- '@id': mfg:52f0e212-3c4f-4d27-b345-5e964c135824
'@type': Commitment
inputOf: mfg:02b39a30-3e04-4305-9656-7f261aa63c84
action: use
provider: https://manufacturing.example/
receiver: https://manufacturing.example/
resourceConformsTo: urn:uuid:c7897c39-7f05-4a5d-a487-80e130a2414a # injection molding machine
effortQuantity:
hasUnit: hour
hasNumericalValue: 11
- '@id': mfg:02b39a30-3e04-4305-9656-7f261aa63c84
'@type': Process
name: Make bucket white 5 gallon
plannedWithin: mfg:8e5fe80d-a769-4bd5-89e5-2136d33eab9f
basedOn: mfg:27be5cab-d740-4194-9298-1661a69d9d95 # the process specification
time:hasDuration:
time:unitType unit:Hour
time:numericDuration 14
- '@id': mfg:a8236bbb-81e0-422d-9861-56d2417db0fb
'@type': Commitment
outputOf: mfg:02b39a30-3e04-4305-9656-7f261aa63c84
action: produce
provider: https://manufacturing.example/
receiver: https://manufacturing.example/
resourceConformsTo: urn:uuid:3be5259d-10f0-431c-9fec-9c0c15a461d3 # bucket
resourceQuantity:
hasUnit: one
hasNumericalValue: 1000
- '@id': mfg:fbff9852-36ca-4364-a943-bc0b49e1cab5
'@type': Commitment
inputOf: mfg:8baa8ff7-9c1e-4586-ae7b-79d620a3cac9
action: accept
provider: https://manufacturing.example/
receiver: https://manufacturing.example/
resourceConformsTo: urn:uuid:3be5259d-10f0-431c-9fec-9c0c15a461d3 # bucket
stage: mfg:27be5cab-d740-4194-9298-1661a69d9d95 # 'make' process specification
resourceQuantity:
hasUnit: one
hasNumericalValue: 1000
- '@id': mfg:8baa8ff7-9c1e-4586-ae7b-79d620a3cac9
'@type': Process
name: QT bucket white 5 gallon
plannedWithin: mfg:8e5fe80d-a769-4bd5-89e5-2136d33eab9f
basedOn: mfg:6fb358a3-2859-4d6a-a4fa-431603ee70f5 # the process specification
time:hasDuration:
time:unitType unit:Hour
time:numericDuration 14
- '@id': mfg:21f361a6-2375-46bb-b192-c21b5ba833bf
'@type': Commitment
independentDemandOf: mfg:8e5fe80d-a769-4bd5-89e5-2136d33eab9f # the plan
outputOf: mfg:8baa8ff7-9c1e-4586-ae7b-79d620a3cac9
action: modify
state: pass
provider: https://manufacturing.example/
receiver: https://manufacturing.example/
resourceConformsTo: urn:uuid:3be5259d-10f0-431c-9fec-9c0c15a461d3 # bucket
resourceQuantity:
hasUnit: one
hasNumericalValue: 1000
- '@id': mfg:21f361a6-2375-46bb-b192-c21b5ba833bg
'@type': Commitment
outputOf: mfg:8baa8ff7-9c1e-4586-ae7b-79d620a3cac9
action: produce
provider: https://manufacturing.example/
receiver: https://manufacturing.example/
resourceConformsTo: urn:uuid:d4d2fd71-34f2-41c3-b1c5-19ad5ed2da58 # polymer
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 0
# manufacture and test the buckets according to plan
- '@id': mfg:e18c808c-929a-450d-9d0d-3b3f531bc126
'@type': EconomicEvent
inputOf: mfg:02b39a30-3e04-4305-9656-7f261aa63c84 # planned make process
action: consume
provider: https://manufacturing.example/
receiver: https://manufacturing.example/
resourceInventoriedAs: mfg:6b5bc786-b9ed-4189-b34f-5ef7d10f1f86 # polymer stock
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 925
- '@id': mfg:5d2fe7da-b91b-4dab-91d9-68db80c1feb7
'@type': EconomicEvent
inputOf: mfg:02b39a30-3e04-4305-9656-7f261aa63c84 # planned make process
action: use
provider: https://manufacturing.example/
receiver: https://manufacturing.example/
resourceInventoriedAs: mfg:23799c14-c368-4653-a584-83bf9ae8b82a # the machine
effortQuantity:
hasUnit: hour
hasNumericalValue: 10.7
- '@id': mfg:8791913c-0152-4c32-bb3f-f25d61df736c
'@type': EconomicEvent
outputOf: mfg:02b39a30-3e04-4305-9656-7f261aa63c84 # planned make process
action: produce
provider: https://manufacturing.example/
receiver: https://manufacturing.example/
resourceInventoriedAs: mfg:3129ca8b-fcda-45be-bbda-294dc924d3b9 # buckets
resourceQuantity:
hasUnit: one
hasNumericalValue: 1000
- '@id': mfg:a8236bbb-81e0-422d-9861-56d2417db0fb
'@type': EconomicEvent
inputOf: mfg:8baa8ff7-9c1e-4586-ae7b-79d620a3cac9 # planned qt process
action: accept
provider: https://manufacturing.example/
receiver: https://manufacturing.example/
resourceInventoriedAs: mfg:3129ca8b-fcda-45be-bbda-294dc924d3b9 #buckets
resourceQuantity:
hasUnit: one
hasNumericalValue: 1000
- '@id': mfg:52f0e212-3c4f-4d27-b345-5e964c135824
'@type': EconomicEvent
outputOf: mfg:8baa8ff7-9c1e-4586-ae7b-79d620a3cac9 # planned qt process
action: modify
state: pass
provider: https://manufacturing.example/
receiver: https://manufacturing.example/
resourceInventoriedAs: mfg:3129ca8b-fcda-45be-bbda-294dc924d3b9 # buckets
resourceQuantity:
hasUnit: one
hasNumericalValue: 998
- '@id': mfg:e1721a61-cd47-4556-84b9-8b1b81da15bf
'@type': EconomicEvent
outputOf: mfg:8baa8ff7-9c1e-4586-ae7b-79d620a3cac9 # planned qt process
action: produce
provider: https://manufacturing.example/
receiver: https://manufacturing.example/
resourceInventoriedAs: mfg:6b5bc786-b9ed-4189-b34f-5ef7d10f1f86 # polymer stock
resourceQuantity:
hasUnit: kilogram
hasNumericalValue: 1.8
# resources after
- '@id': mfg:3129ca8b-fcda-45be-bbda-294dc924d3b9
'@type': EconomicResource
name: Bucket white 5 gallon
conformsTo: urn:uuid:3be5259d-10f0-431c-9fec-9c0c15a461d3
accountingQuantity:
hasUnit: one
hasNumericalValue: 1318
state: pass
stage: mfg:6fb358a3-2859-4d6a-a4fa-431603ee70f5 #QT
- '@id': mfg:6b5bc786-b9ed-4189-b34f-5ef7d10f1f86
'@type': EconomicResource
name: Thermoplastic polymer white
conformsTo: urn:uuid:d4d2fd71-34f2-41c3-b1c5-19ad5ed2da58
accountingQuantity:
hasUnit: kilogram
hasNumericalValue: 1531.8
- '@id': mfg:23799c14-c368-4653-a584-83bf9ae8b82a
'@type': EconomicResource
name: Injection molding maching
conformsTo: urn:uuid:c7897c39-7f05-4a5d-a487-80e130a2414a
trackingIdentifier: DDE098989099911
accountingQuantity:
hasUnit: one
hasNumericalValue: 1
unitOfEffort: hour
